[GH-ISSUE #173] VNC is not working over https #118

New issue
Closed
opened 2026-02-27 15:57:24 +03:00 by kerem · 3 comments
kerem commented 2026-02-27 15:57:24 +03:00
Owner
Copy link

Originally created by @lord-kyron on GitHub (Aug 11, 2018).
Original GitHub issue: https://github.com/retspen/webvirtcloud/issues/173

I am trying to get VNC working over https.
In my settings.py I have convigured:

`` ## WebVirtCloud settings

Wobsock port

WS_PORT = 6080

Websock host

WS_HOST = '0.0.0.0'

Websock public port

WS_PUBLIC_HOST = 'my.domain.com'

Websock SSL connection

WS_CERT = '/etc/letsencrypt/live/my.domain.com/fulchain.pem'``

and in /console/novncd:

CERT = DIR_PATH + '/etc/letsencrypt/live/my.domain.com/fulchain.pem'

my.domain.com is just for illustration.

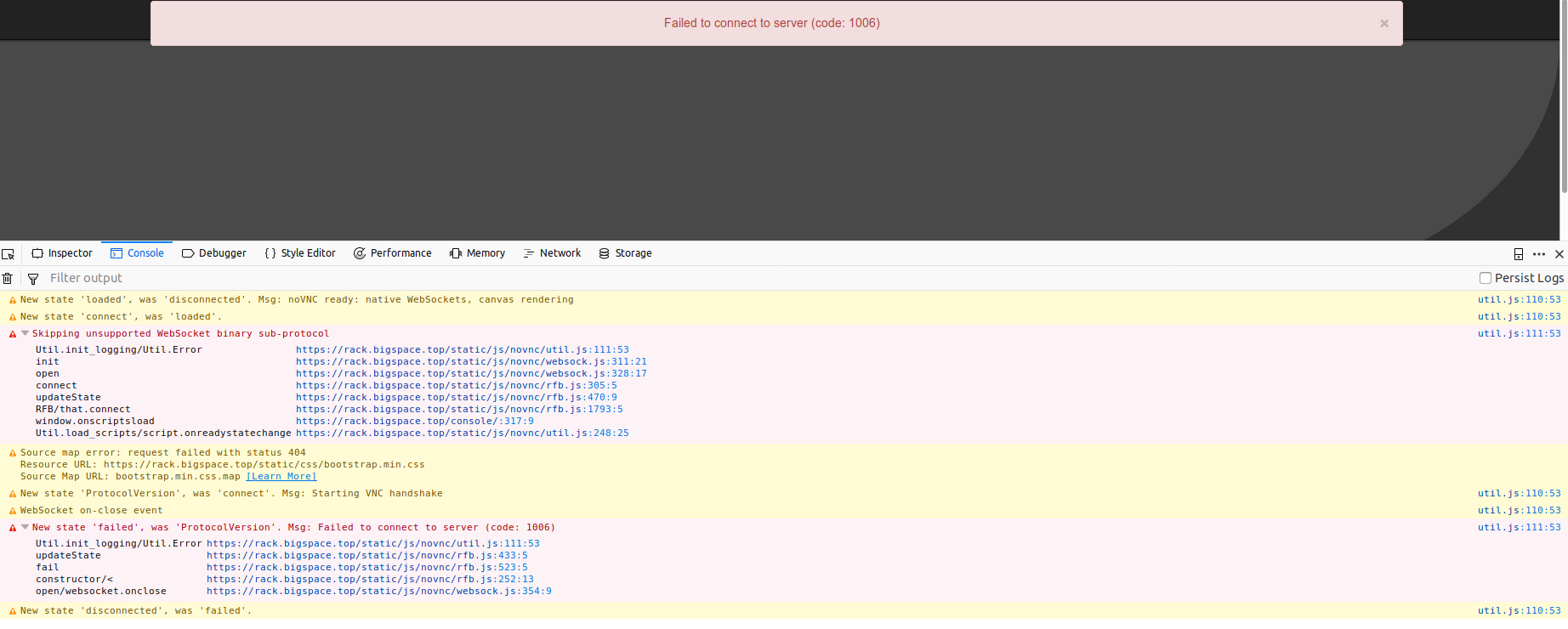

My ssl is fully working on the nginx server, however, when I try to open the vnc over https, I am getting 1006 erro all the time.
@catborise @honza801 - can you give me some advise or help with how to configure this?

fail

Originally created by @lord-kyron on GitHub (Aug 11, 2018). Original GitHub issue: https://github.com/retspen/webvirtcloud/issues/173 I am trying to get VNC working over https. In my settings.py I have convigured: `` ## WebVirtCloud settings # Wobsock port WS_PORT = 6080 # Websock host WS_HOST = '0.0.0.0' # Websock public port WS_PUBLIC_HOST = 'my.domain.com' # Websock SSL connection WS_CERT = '/etc/letsencrypt/live/my.domain.com/fulchain.pem'`` and in /console/novncd: `CERT = DIR_PATH + '/etc/letsencrypt/live/my.domain.com/fulchain.pem'` my.domain.com is just for illustration. My ssl is fully working on the nginx server, however, when I try to open the vnc over https, I am getting 1006 erro all the time. @catborise @honza801 - can you give me some advise or help with how to configure this? ![fail](https://user-images.githubusercontent.com/39150122/43994377-a7ab3cda-9da4-11e8-9e29-1ea8612b0667.png)
kerem closed this issue 2026-02-27 15:57:24 +03:00
kerem commented 2026-02-27 15:57:24 +03:00
Author
Owner
Copy link

@lord-kyron commented on GitHub (Aug 11, 2018):

UPDATE: Actually it was never working fine on firefox.

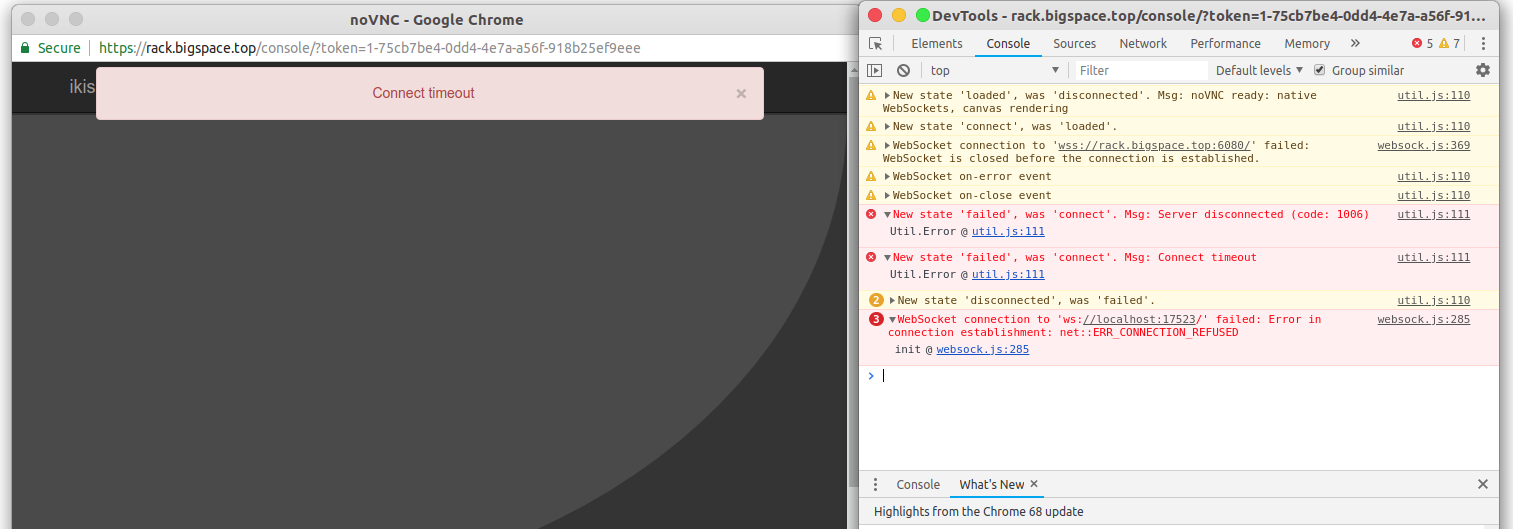

Here is the log from Chrome - there it gives me connection time out error:
rack

<!-- gh-comment-id:412292080 --> @lord-kyron commented on GitHub (Aug 11, 2018): UPDATE: Actually it was never working fine on firefox. Here is the log from Chrome - there it gives me connection time out error: ![rack](https://user-images.githubusercontent.com/39150122/43994719-72961564-9daa-11e8-8a7c-8f1cb8062cb3.png)
kerem commented 2026-02-27 15:57:24 +03:00
Author
Owner
Copy link

@lord-kyron commented on GitHub (Aug 11, 2018):

@honza801 @catborise
I've made it work following the tutorial from this issue:
https://github.com/retspen/webvirtcloud/issues/126#issuecomment-394981688

Basically I've kept those settings I've posted above, but applied from this issue the proxying of the websockets over the nginx working port of the webvirtcloud. In my case port 443, not 80.
it is working now and I plan to make a patch which I will apply to my version of the repo in order to make this easy for other guys looking to make this work - either with or without ssl - proxying it over the nginx is a great idea!

<!-- gh-comment-id:412298512 --> @lord-kyron commented on GitHub (Aug 11, 2018): @honza801 @catborise I've made it work following the tutorial from this issue: https://github.com/retspen/webvirtcloud/issues/126#issuecomment-394981688 Basically I've kept those settings I've posted above, but applied from this issue the proxying of the websockets over the nginx working port of the webvirtcloud. In my case port 443, not 80. it is working now and I plan to make a patch which I will apply to my version of the repo in order to make this easy for other guys looking to make this work - either with or without ssl - proxying it over the nginx is a great idea!
kerem commented 2026-02-27 15:57:24 +03:00
Author
Owner
Copy link

@kilejiunderscorea commented on GitHub (Mar 28, 2019):

Hello,

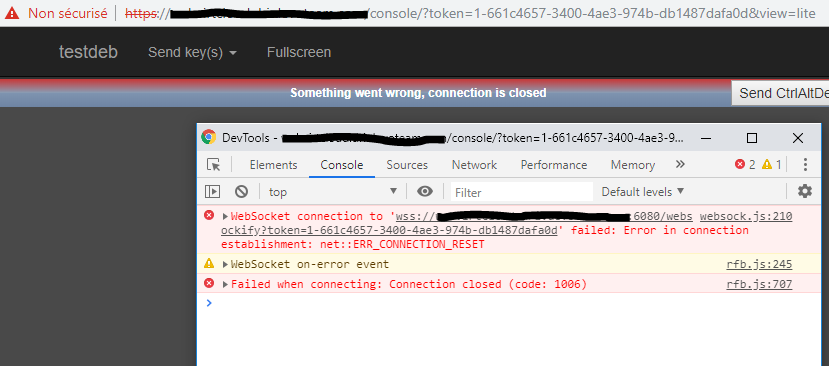

For those who still have the problem with novnc and https:

Try concatenating your cert file and key file into a pem file like this:
$> cat cert.crt cert.key > cert.pem

Then, in /etc/supervisord.conf at the include novncd part, make sure to add the cert parameter in command, like the image below:


$> systemctl restart supervisord

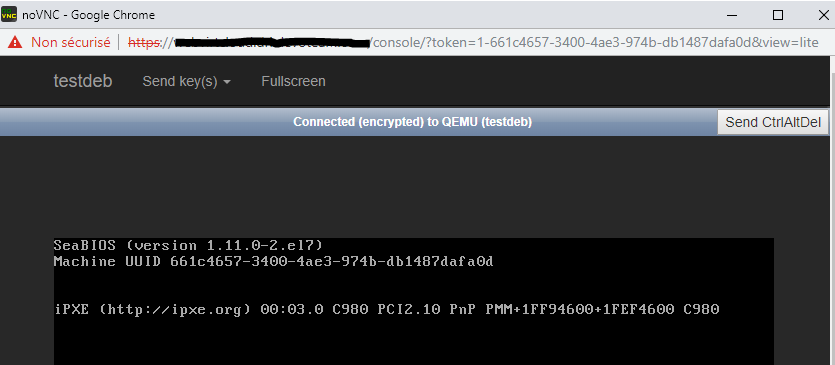

And now, it should work fine.

<!-- gh-comment-id:477526344 --> @kilejiunderscorea commented on GitHub (Mar 28, 2019): Hello, For those who still have the problem with novnc and https: ![image](https://user-images.githubusercontent.com/19324976/55147631-06cae980-5147-11e9-9a81-364b6ac6215d.png) Try concatenating your cert file and key file into a pem file like this: `$> cat cert.crt cert.key > cert.pem` Then, in /etc/supervisord.conf at the include novncd part, make sure to add the cert parameter in command, like the image below: ![image](https://user-images.githubusercontent.com/19324976/55147932-95d80180-5147-11e9-91ef-f4ea5060e09b.png) `$> systemctl restart supervisord` And now, it should work fine. ![image](https://user-images.githubusercontent.com/19324976/55148134-f1a28a80-5147-11e9-828c-ad9e53721aa8.png)
