[GH-ISSUE #805] Not fill the full width/height in a layout #587

New issue

Closed

opened 2026-03-04 01:06:15 +03:00 by kerem · 2 comments

kerem commented

2026-03-04 01:06:15 +03:00

Owner

Originally created by @tcurdt on GitHub (Jan 31, 2023).
Original GitHub issue: https://github.com/rivo/tview/issues/805

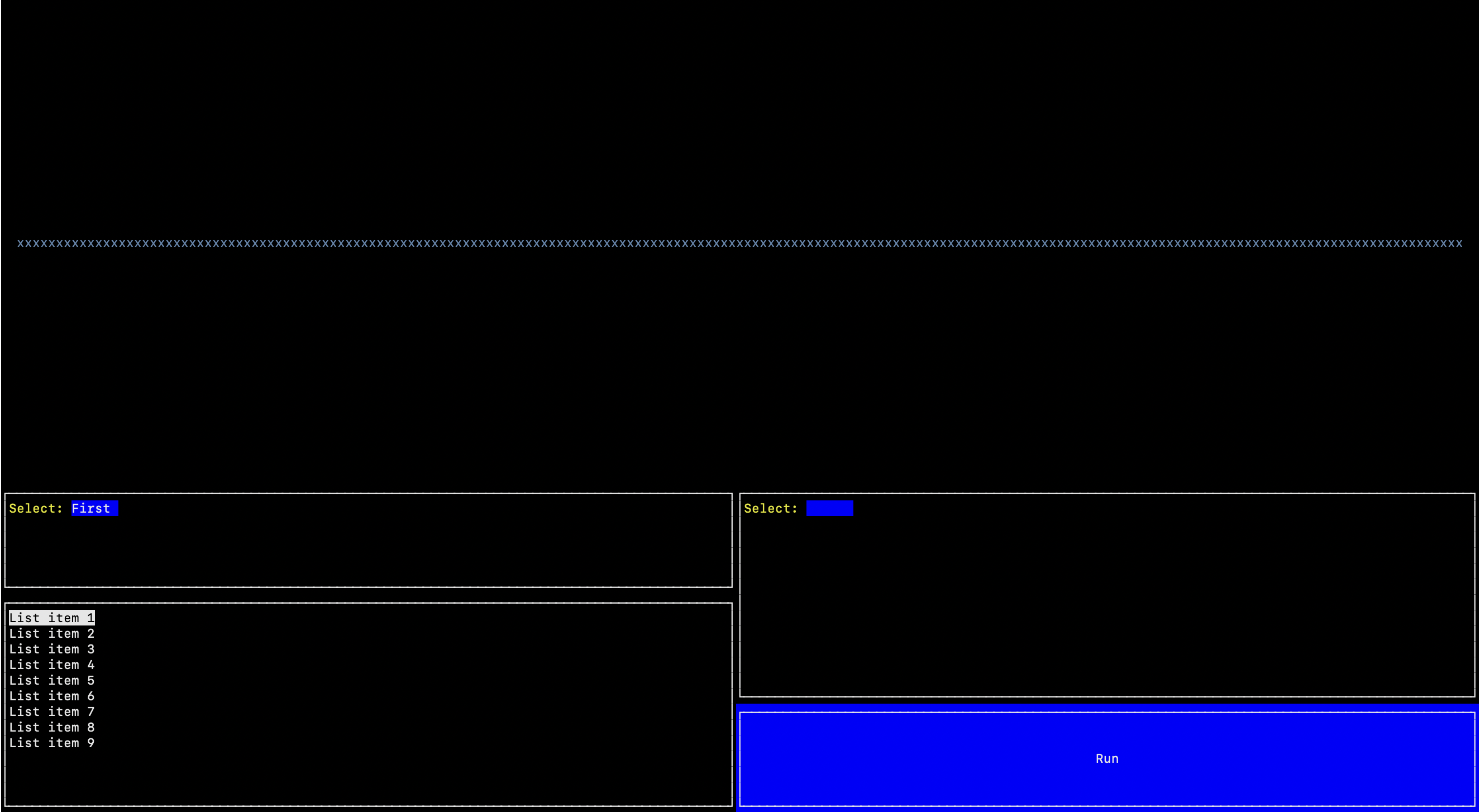

I am struggling with some of the layout specifics. I created this layout by using multiple flex layouts.

Which was quite straight forward. But this way I can only configure ratios.

The dropdowns are filling a full cell while they should only stay at their intrinsic size. Same goes for the button that is way too big. It's fine for the List to fill the available space, but all other controls should not.

The right side looks like this:

	layout := tview.NewFlex().SetDirection(tview.FlexRow)

	dropdown := tview.NewDropDown().
		SetLabel("Select: ").
		SetOptions([]string{
			"First",
			"Second",
			"Third",
			"Fourth",
			"Fifth",
		}, nil)
	dropdown.SetBorder(true)

	button := tview.NewButton("Run")
	button.SetBorder(true)

	layout.AddItem(dropdown, 0, 2, false)
	layout.AddItem(button, 0, 1, false)

I have the feeling I am missing something.

Did I miss something in the docs?
Could you give me some pointers?

Originally created by @tcurdt on GitHub (Jan 31, 2023). Original GitHub issue: https://github.com/rivo/tview/issues/805 I am struggling with some of the layout specifics. I created this layout by using multiple flex layouts. <img width="1325" alt="Screenshot 2023-01-31 at 01 36 06" src="https://user-images.githubusercontent.com/13697/215628719-cdd25423-6f21-4090-bd0c-de7ddbdaa2e0.png"> Which was quite straight forward. But this way I can only configure ratios. The dropdowns are filling a full cell while they should only stay at their intrinsic size. Same goes for the button that is way too big. It's fine for the List to fill the available space, but all other controls should not. The right side looks like this: ``` layout := tview.NewFlex().SetDirection(tview.FlexRow) dropdown := tview.NewDropDown(). SetLabel("Select: "). SetOptions([]string{ "First", "Second", "Third", "Fourth", "Fifth", }, nil) dropdown.SetBorder(true) button := tview.NewButton("Run") button.SetBorder(true) layout.AddItem(dropdown, 0, 2, false) layout.AddItem(button, 0, 1, false) ``` I have the feeling I am missing something. Did I miss something in the docs? Could you give me some pointers?

kerem closed this issue

2026-03-04 01:06:16 +03:00

kerem commented

2026-03-04 01:06:16 +03:00

Author

Owner

@tcurdt commented on GitHub (Jan 31, 2023):

Ahhh! Thanks for that pointer.
When I was trying with a size of 1 the control just disappeared - because the border required a minimum of 3.

But that's just for the direction of the flex.
Is there also a way for the items not to span the full width?

@tcurdt commented on GitHub (Jan 31, 2023): Ahhh! Thanks for that pointer. When I was trying with a size of 1 the control just disappeared - because the border required a minimum of 3. But that's just for the direction of the flex. Is there also a way for the items not to span the full width?

kerem commented

2026-03-04 01:06:16 +03:00

Author

Owner

@tcurdt commented on GitHub (Feb 1, 2023):

As said: I did.
But it just disappeared because the border needed at least 3.

Anyway. Clear now.

@tcurdt commented on GitHub (Feb 1, 2023): As said: I did. But it just disappeared because the border needed at least 3. Anyway. Clear now.
