[GH-ISSUE #544] Double borders rendered incorrectly on vmware console #399

New issue

Closed

opened 2026-03-04 01:04:38 +03:00 by kerem · 2 comments

kerem commented

2026-03-04 01:04:38 +03:00

Owner

Originally created by @SimoneLazzaris on GitHub (Jan 7, 2021).
Original GitHub issue: https://github.com/rivo/tview/issues/544

Hi all;

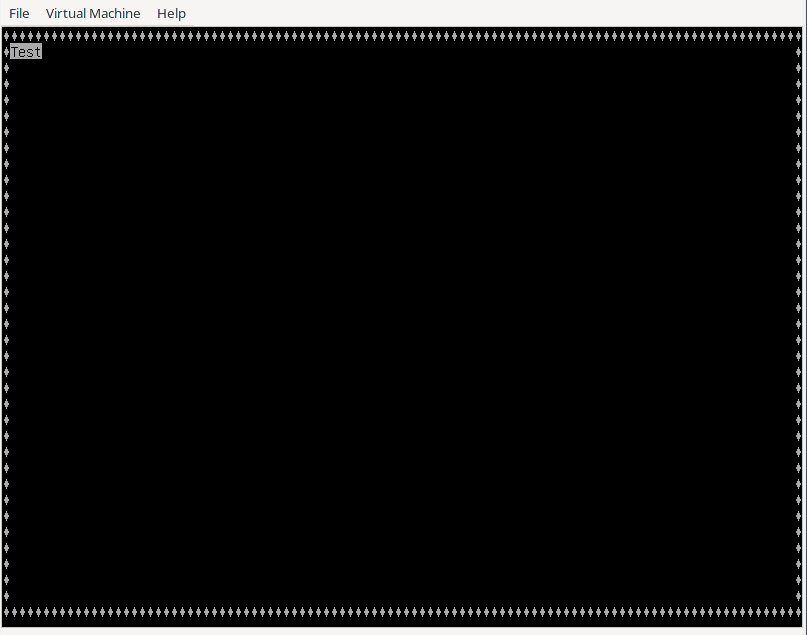

I've got an application that runs fine in terminal emulator but shows incorrect double borders when run through vmware console.

Single line borders are displayed correctly.
I've already tried and set LC_CTYPE as suggested in the FAQ.

My locale:

Any tips? It would also be acceptable to convert all double borders to single one

Originally created by @SimoneLazzaris on GitHub (Jan 7, 2021). Original GitHub issue: https://github.com/rivo/tview/issues/544 Hi all; I've got an application that runs fine in terminal emulator but shows incorrect double borders when run through vmware console. ![Screenshot_20210107_110444](https://user-images.githubusercontent.com/11316967/103879465-3064c300-50d8-11eb-85f3-9497d6b9c6fb.png) Single line borders are displayed correctly. I've already tried and set LC_CTYPE as suggested in the FAQ. My locale: ![Screenshot_20210107_110644](https://user-images.githubusercontent.com/11316967/103879689-7c176c80-50d8-11eb-9fd9-371e50c36d81.png) Any tips? It would also be acceptable to convert all double borders to single one

kerem closed this issue

2026-03-04 01:04:38 +03:00

kerem commented

2026-03-04 01:04:39 +03:00

Author

Owner

@rivo commented on GitHub (Jan 11, 2021):

It looks to me like your terminal emulator isn't able to print all the required characters. For example, if you run something like this in your terminal:

package main

import (
	"fmt"
)

func main() {
	fmt.Println("\u2550")
}

You should see a double line like this:

If you don't, then the font used by the emulator may be incomplete. You could check the settings and change the font maybe, I don't know. Or like you suggested yourself, change the semigraphics characters used in the Borders variable.

Let me know if any of this helps.

@rivo commented on GitHub (Jan 11, 2021): It looks to me like your terminal emulator isn't able to print all the required characters. For example, if you run something like this in your terminal: ```go package main import ( "fmt" ) func main() { fmt.Println("\u2550") } ``` You should see a double line like this: ![image](https://user-images.githubusercontent.com/480930/104213356-79997780-5436-11eb-914e-ec3567d733a1.png) If you don't, then the font used by the emulator may be incomplete. You could check the settings and change the font maybe, I don't know. Or like you suggested yourself, change the semigraphics characters used in the [`Borders`](https://pkg.go.dev/github.com/rivo/tview#Borders) variable. Let me know if any of this helps.

kerem commented

2026-03-04 01:04:39 +03:00

Author

Owner

@SimoneLazzaris commented on GitHub (Jan 15, 2021):

I've ended up changing the semigraphics characters to always use single borders. Thanks

@SimoneLazzaris commented on GitHub (Jan 15, 2021): I've ended up changing the semigraphics characters to always use single borders. Thanks
