[GH-ISSUE #466] Input field can not be fully displayed #335

New issue

Closed

opened 2026-03-04 01:04:06 +03:00 by kerem · 4 comments

kerem commented 2026-03-04 01:04:06 +03:00

Owner

Copy link

Originally created by @zhouke66 on GitHub (Jul 8, 2020).
Original GitHub issue: https://github.com/rivo/tview/issues/466

I need multiple input field and switch them with pressing Up or Down key

This code is shown below

package main

import (
	"strconv"

	"github.com/gdamore/tcell"
	"github.com/rivo/tview"
)

func switchNextField(app *tview.Application, inputField [20]tview.Primitive) {
	focusLabel := app.GetFocus().(*tview.InputField).GetLabel()
	focusIndex, _ := strconv.Atoi(focusLabel)

	if focusIndex == 19 {
		focusIndex = 0
	} else {
		focusIndex = focusIndex + 1
	}

	app.SetFocus(inputField[focusIndex])
}

func switchLastField(app *tview.Application, inputField [20]tview.Primitive) {
	focusLabel := app.GetFocus().(*tview.InputField).GetLabel()
	focusIndex, _ := strconv.Atoi(focusLabel)

	if focusIndex == 0 {
		focusIndex = 19
	} else {
		focusIndex = focusIndex - 1
	}

	app.SetFocus(inputField[focusIndex])
}

func main() {
	app := tview.NewApplication()
	var inputField [20]tview.Primitive
	var inputText [20]tview.Primitive

	inputFlex := tview.NewFlex().SetDirection(tview.FlexRow)

	for i := 0; i < 20; i++ {
		inputField[i] = tview.NewInputField().SetLabel(strconv.Itoa(i)).
			SetLabelWidth(15).SetText(strconv.Itoa(i)).SetFieldWidth(30)

		inputText[i] = tview.NewTextView().SetText(strconv.Itoa(i))

		inputFlex.AddItem(inputField[i], 0, 1, true).
			AddItem(inputText[i], 0, 1, true)
	}

	app.SetInputCapture(func(event *tcell.EventKey) *tcell.EventKey {
		if _, ok := app.GetFocus().(*tview.InputField); ok {
			switch event.Key() {
			case tcell.KeyTab, tcell.KeyEnter, tcell.KeyDown:
				switchNextField(app, inputField)
			case tcell.KeyUp:
				switchLastField(app, inputField)
			}
		}

		return event
	})

	flex := tview.NewFlex().SetDirection(tview.FlexRow).
		AddItem(tview.NewBox(), 0, 1, false).AddItem(inputFlex, 0, 1, true).
		AddItem(tview.NewBox(), 0, 1, false)

	if err := app.SetRoot(flex, true).Run(); err != nil {
		panic(err)
	}
}

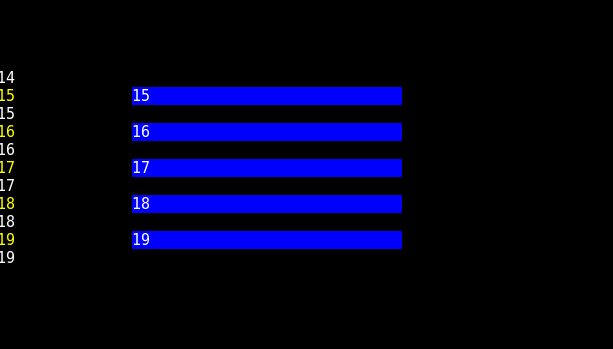

Run the code, only the last few input field are displayed on the screen.

How to display the focused field when press Up or Down key?
If you have answer and discuss this issue, please tell me. Thanks

Originally created by @zhouke66 on GitHub (Jul 8, 2020). Original GitHub issue: https://github.com/rivo/tview/issues/466 I need multiple input field and switch them with pressing Up or Down key This code is shown below ``` package main import ( "strconv" "github.com/gdamore/tcell" "github.com/rivo/tview" ) func switchNextField(app *tview.Application, inputField [20]tview.Primitive) { focusLabel := app.GetFocus().(*tview.InputField).GetLabel() focusIndex, _ := strconv.Atoi(focusLabel) if focusIndex == 19 { focusIndex = 0 } else { focusIndex = focusIndex + 1 } app.SetFocus(inputField[focusIndex]) } func switchLastField(app *tview.Application, inputField [20]tview.Primitive) { focusLabel := app.GetFocus().(*tview.InputField).GetLabel() focusIndex, _ := strconv.Atoi(focusLabel) if focusIndex == 0 { focusIndex = 19 } else { focusIndex = focusIndex - 1 } app.SetFocus(inputField[focusIndex]) } func main() { app := tview.NewApplication() var inputField [20]tview.Primitive var inputText [20]tview.Primitive inputFlex := tview.NewFlex().SetDirection(tview.FlexRow) for i := 0; i < 20; i++ { inputField[i] = tview.NewInputField().SetLabel(strconv.Itoa(i)). SetLabelWidth(15).SetText(strconv.Itoa(i)).SetFieldWidth(30) inputText[i] = tview.NewTextView().SetText(strconv.Itoa(i)) inputFlex.AddItem(inputField[i], 0, 1, true). AddItem(inputText[i], 0, 1, true) } app.SetInputCapture(func(event *tcell.EventKey) *tcell.EventKey { if _, ok := app.GetFocus().(*tview.InputField); ok { switch event.Key() { case tcell.KeyTab, tcell.KeyEnter, tcell.KeyDown: switchNextField(app, inputField) case tcell.KeyUp: switchLastField(app, inputField) } } return event }) flex := tview.NewFlex().SetDirection(tview.FlexRow). AddItem(tview.NewBox(), 0, 1, false).AddItem(inputFlex, 0, 1, true). AddItem(tview.NewBox(), 0, 1, false) if err := app.SetRoot(flex, true).Run(); err != nil { panic(err) } } ``` Run the code, only the last few input field are displayed on the screen.  How to display the focused field when press Up or Down key? If you have answer and discuss this issue, please tell me. Thanks

kerem closed this issue 2026-03-04 01:04:07 +03:00

kerem commented 2026-03-04 01:04:07 +03:00

Author

Owner

Copy link

@rivo commented on GitHub (Jul 12, 2020):

You might want to use Grid instead of Flex here. Grid has SetOffset() which allows you to scroll the grid elements.

<!-- gh-comment-id:657230898 --> @rivo commented on GitHub (Jul 12, 2020): You might want to use `Grid` instead of `Flex` here. `Grid` has [`SetOffset()`](https://pkg.go.dev/github.com/rivo/tview?tab=doc#Grid.SetOffset) which allows you to scroll the grid elements.

kerem commented 2026-03-04 01:04:07 +03:00

Author

Owner

Copy link

@zhouke66 commented on GitHub (Jul 15, 2020):

Thanks for your suggestion. According to your suggestion I wrote the following code
package main

import (
	"strconv"

	"github.com/gdamore/tcell"
	"github.com/rivo/tview"
)

func switchNextField(app *tview.Application, inputField [10]tview.Primitive) {
	focusLabel := app.GetFocus().(*tview.InputField).GetLabel()
	focusIndex, _ := strconv.Atoi(focusLabel)

	if focusIndex == 9 {
		focusIndex = 0
	} else {
		focusIndex = focusIndex + 1
	}

	app.SetFocus(inputField[focusIndex])
}

func switchLastField(app *tview.Application, inputField [10]tview.Primitive) {
	focusLabel := app.GetFocus().(*tview.InputField).GetLabel()
	focusIndex, _ := strconv.Atoi(focusLabel)

	if focusIndex == 0 {
		focusIndex = 9
	} else {
		focusIndex = focusIndex - 1
	}

	app.SetFocus(inputField[focusIndex])
}

func main() {
	app := tview.NewApplication()
	var inputField [10]tview.Primitive

	grid := tview.NewGrid().
		SetSize(20, 0, 1, 0).
		SetColumns(0, -3, 0)

	grid.SetBorders(true).SetBackgroundColor(tcell.ColorBlack)

	for i := 0; i < 10; i++ {
		inputField[i] = tview.NewInputField().SetLabel(strconv.Itoa(i)).
			SetLabelWidth(15).SetText(strconv.Itoa(i)).SetFieldWidth(30)

		grid.AddItem(inputField[i], i, 1, 1, 1, 0, 0, true)
	}

	app.SetInputCapture(func(event *tcell.EventKey) *tcell.EventKey {
		if _, ok := app.GetFocus().(*tview.InputField); ok {
			switch event.Key() {
			case tcell.KeyTab, tcell.KeyEnter, tcell.KeyDown:
				switchNextField(app, inputField)
			case tcell.KeyUp:
				switchLastField(app, inputField)
			}
		}

		return event
	})

	flex := tview.NewFlex().SetDirection(tview.FlexRow).
		AddItem(tview.NewBox(), 0, 1, false).AddItem(grid, 0, 1, true).
		AddItem(tview.NewBox(), 0, 1, false)

	if err := app.SetRoot(flex, true).Run(); err != nil {
		panic(err)
	}
}

Run the code, four input field are displayed

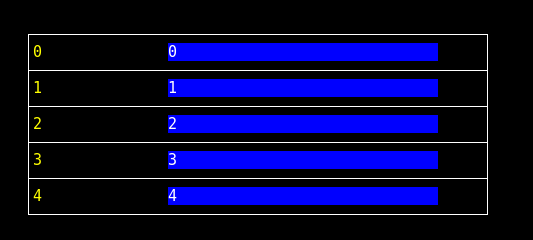

But after pressing Down key in the fourth input field, the number of input field be changed to 5.

May I ask why?

<!-- gh-comment-id:658529591 --> @zhouke66 commented on GitHub (Jul 15, 2020): Thanks for your suggestion. According to your suggestion I wrote the following code package main ``` import ( "strconv" "github.com/gdamore/tcell" "github.com/rivo/tview" ) func switchNextField(app *tview.Application, inputField [10]tview.Primitive) { focusLabel := app.GetFocus().(*tview.InputField).GetLabel() focusIndex, _ := strconv.Atoi(focusLabel) if focusIndex == 9 { focusIndex = 0 } else { focusIndex = focusIndex + 1 } app.SetFocus(inputField[focusIndex]) } func switchLastField(app *tview.Application, inputField [10]tview.Primitive) { focusLabel := app.GetFocus().(*tview.InputField).GetLabel() focusIndex, _ := strconv.Atoi(focusLabel) if focusIndex == 0 { focusIndex = 9 } else { focusIndex = focusIndex - 1 } app.SetFocus(inputField[focusIndex]) } func main() { app := tview.NewApplication() var inputField [10]tview.Primitive grid := tview.NewGrid(). SetSize(20, 0, 1, 0). SetColumns(0, -3, 0) grid.SetBorders(true).SetBackgroundColor(tcell.ColorBlack) for i := 0; i < 10; i++ { inputField[i] = tview.NewInputField().SetLabel(strconv.Itoa(i)). SetLabelWidth(15).SetText(strconv.Itoa(i)).SetFieldWidth(30) grid.AddItem(inputField[i], i, 1, 1, 1, 0, 0, true) } app.SetInputCapture(func(event *tcell.EventKey) *tcell.EventKey { if _, ok := app.GetFocus().(*tview.InputField); ok { switch event.Key() { case tcell.KeyTab, tcell.KeyEnter, tcell.KeyDown: switchNextField(app, inputField) case tcell.KeyUp: switchLastField(app, inputField) } } return event }) flex := tview.NewFlex().SetDirection(tview.FlexRow). AddItem(tview.NewBox(), 0, 1, false).AddItem(grid, 0, 1, true). AddItem(tview.NewBox(), 0, 1, false) if err := app.SetRoot(flex, true).Run(); err != nil { panic(err) } } ``` Run the code, four input field are displayed  But after pressing Down key in the fourth input field, the number of input field be changed to 5.  May I ask why?

kerem commented 2026-03-04 01:04:07 +03:00

Author

Owner

Copy link

@rivo commented on GitHub (Sep 15, 2020):

I'm sorry but your code doesn't compile. Can you please make it compile first and post it again? I'll have a look then.

<!-- gh-comment-id:692634002 --> @rivo commented on GitHub (Sep 15, 2020): I'm sorry but your code doesn't compile. Can you please make it compile first and post it again? I'll have a look then.

kerem commented 2026-03-04 01:04:08 +03:00

Author

Owner

Copy link

@rivo commented on GitHub (Jan 11, 2021):

If this topic is still relevant, please open a new issue with your answer and reference this one.

<!-- gh-comment-id:757954319 --> @rivo commented on GitHub (Jan 11, 2021): If this topic is still relevant, please open a new issue with your answer and reference this one.
