[GH-ISSUE #95] LineChart should limit the use of decimal digits on the Y axis #61

New issue

Open

opened 2026-03-03 16:22:03 +03:00 by kerem · 0 comments

kerem commented

2026-03-03 16:22:03 +03:00

Owner

Originally created by @mum4k on GitHub (Jan 27, 2019).
Original GitHub issue: https://github.com/mum4k/termdash/issues/95

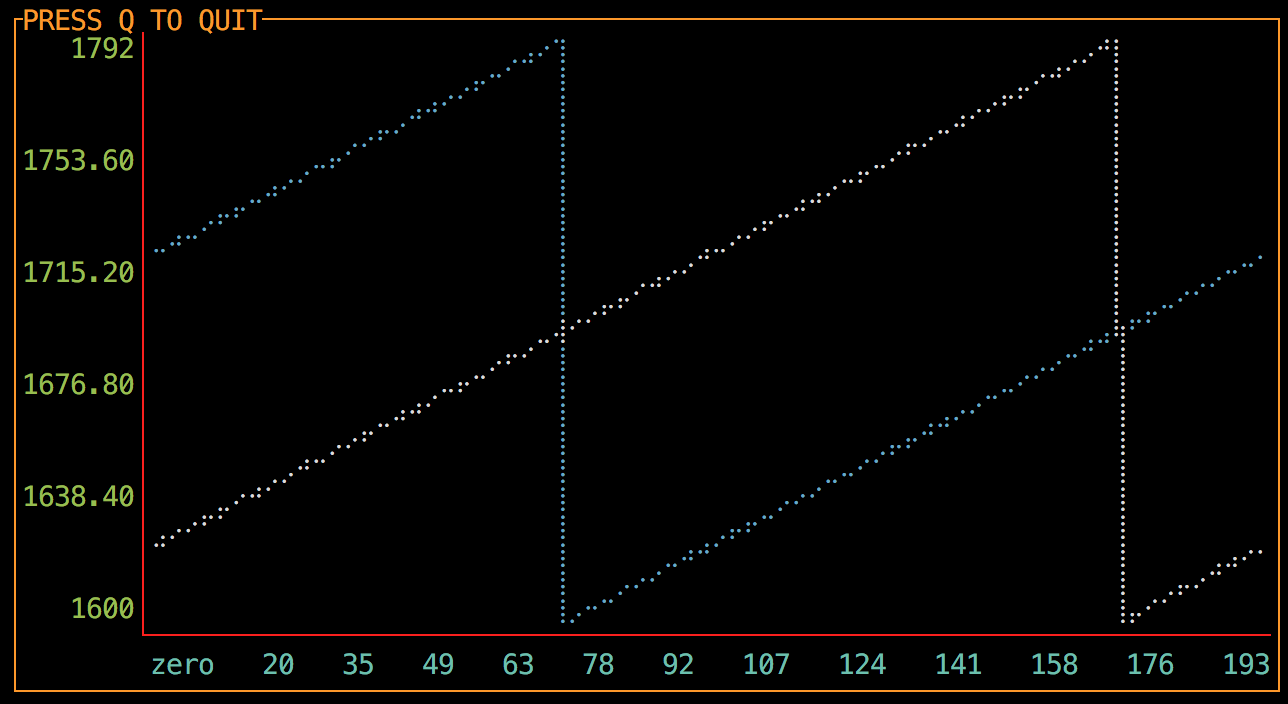

The following screenshot demonstrates the issue:

All the values are integers in the range of 1600-1800, yet the LineChart shows floating point values. This is because when the LineChart calculates the value of each cell row (called the step) it ends up being a floating point number.

Step of the Y axis is calculated here:
github.com/mum4k/termdash@1e1dc15c47/widgets/linechart/axes/scale.go (L65)

The labels are determined here:
github.com/mum4k/termdash@1e1dc15c47/widgets/linechart/axes/label.go (L85)

We could add a conditional and if the step between two adjacent rows is larger than X (say 10 or 20?) the generated label will rounded to the nearest integer.
