Originally created by @Niklaus1911 on GitHub (Aug 8, 2017).
Original GitHub issue: https://github.com/SpacehuhnTech/esp8266_deauther/issues/266
@spacehuhn commented on GitHub (Aug 8, 2017):

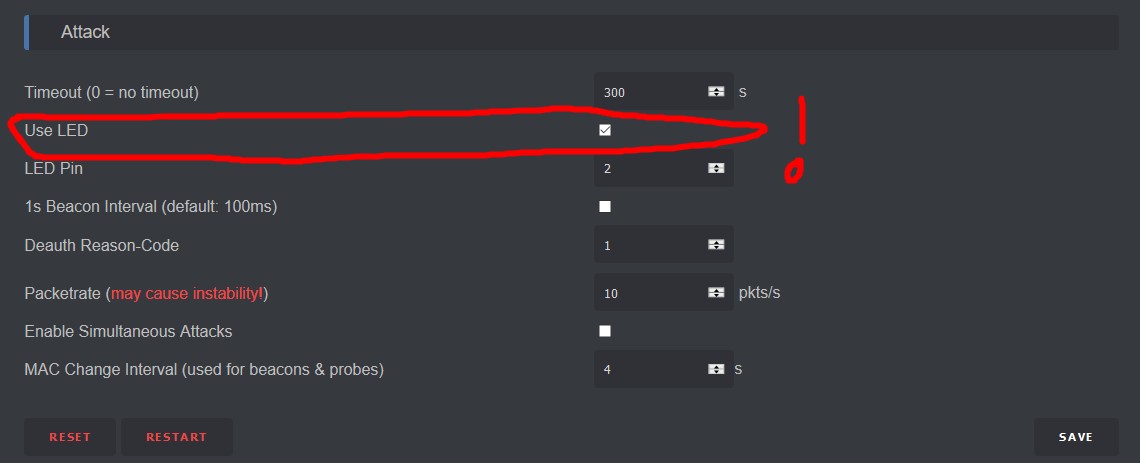

Go to settings and change
Use LEDand click save.@Niklaus1911 commented on GitHub (Aug 8, 2017):
It stays on
@adamff-dev commented on GitHub (Aug 8, 2017):
Yep, I'm using the 1.6 version and the LED always stays on.
@spacehuhn commented on GitHub (Aug 8, 2017):
Works perfect for me on every board.
Are you maybe talking about the Deauther boards? They have multiple LEDs for the charging circuit and a LED on GPIO 16: https://github.com/spacehuhn/esp8266_deauther/blob/master/esp8266_deauther/esp8266_deauther.ino#L20
@N0vaPixel commented on GitHub (Aug 8, 2017):
WoW. Never seen a LED on the GPIO 16 pin of my board. I use a classic NodeMCU board.
For me this is a red LED and is turned on at the beginning of the firmware.
@Niklaus1911 commented on GitHub (Aug 8, 2017):
Im talking about nodemcu esp8266
@N0vaPixel commented on GitHub (Aug 8, 2017):
You are talking about this red LED ?
@spacehuhn commented on GitHub (Aug 8, 2017):
Thanks for the picture @N0vaPixel !
Seems to actually be GPIO16. Not all of my boards have a LED there which is weird.
I will adjust the .bin file.
@Niklaus1911 commented on GitHub (Aug 8, 2017):
@N0vaPixel Yes
@N0vaPixel commented on GitHub (Aug 8, 2017):
To clarrify for all, there is currently two differents LEDs used by the firmware.
The blue is the default used when an attack is running. (Pin 2). You can configure it in the settings web page.
But the red is turned on at startup for some board (GPIO16 confirmed)
This is not bad, it can show that the esp8266 is on and the firmware works correctly ¯_(ツ)_/¯
@spacehuhn commented on GitHub (Aug 8, 2017):
Yep.
I updated the standart 1mb .bin file:
https://github.com/spacehuhn/esp8266_deauther/releases/download/v.1.6/esp8266_deauther_1mb.bin
I guess most people don't want that LED to be on, just because previous versions didn't had that either.
If you still want it, flash the Arduino code.
I will add it to my to-do list for the next update to put an option for GPIO16 into the web interface as well!
@adamff-dev commented on GitHub (Aug 8, 2017):
Thanks! I was about to modify it.
@N0vaPixel commented on GitHub (Aug 8, 2017):
@spacehuhn Yes i think it's a good idea. This new LED can be confusing for many.
For those who want to build a custom firmware to turn off this LED 🔨
In esp8266_deauther.ino
Replace this line #define USE_LED16
With //#define USE_LED16
