[GH-ISSUE #970] Configuration Items in Portal Fail to Display #825

New issue
Closed
opened 2026-02-28 01:27:13 +03:00 by kerem · 8 comments
kerem commented 2026-02-28 01:27:13 +03:00
Owner
Copy link

Originally created by @lbussy on GitHub (Nov 16, 2019).
Original GitHub issue: https://github.com/tzapu/WiFiManager/issues/970

Basic Infos

Hardware

WiFimanager Branch/Release:

Esp8266/Esp32:

  • ESP8266
  • ESP32

Hardware: ESP-12e, esp01, esp25

  • ESP01
  • ESP12 E/F/S (Wemos D1 mini v2.1.0)
  • Other

ESP Core Version: 2.4.0, staging

  • 2.3.0
  • 2.4.0
  • 2.5.2=20502000
  • staging (master/dev)

Description

I am trying to reproduce the issues I have been having in #964 and have run into what I think is a newly introduced issue. At least I hope it is or else I have lost my mind.

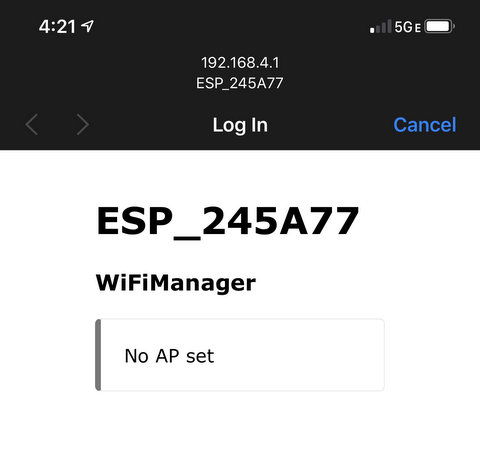

The captive portal fails to display AP configuration fields. I see the following only after connecting to the controller's AP:

Wifimanager Captive Portal

Settings in IDE

Module: Wemos D1 Mini

Additional libraries: NONE

Sketch

#include <WiFiManager.h>

void setup() {
    delay(1000);
    Serial.begin(74880);
    Serial.setDebugOutput(true);
    Serial.flush();

    WiFi.mode(WIFI_STA);
    delay(200);

    WiFiManager wm;
    if (!wm.autoConnect()) {
        Serial.println(F("Failed to connect and hit timeout."));
        ESP.restart();
        delay(1000);
    }
    Serial.println(F("Connected."));
}

void loop() {}

Debug Messages

 ets Jan  8 2013,rst cause:2, boot mode:(3,7)

load 0x4010f000, len 1384, room 16
tail 8
chksum 0x2d
csum 0x2d
v8b899c12
~ld

SDK:2.2.1(cfd48f3)/Core:2.5.2=20502000/lwIP:STABLE-2_1_2_RELEASE/glue:1.1-7-g82abda3/BearSSL:a143020
*WM: [1] AutoConnect
*WM: [2] Connecting as wifi client...
*WM: [1] STA static IP:
*WM: [2] setSTAConfig static ip not set
*WM: [3] WIFI station disconnect
*WM: [1] No saved credentials, skipping wifi
*WM: [2] Connection result: WL_NO_SSID_AVAIL
*WM: [3] lastconxresult: WL_NO_SSID_AVAIL
*WM: [1] AutoConnect: FAILED
*WM: [2] Starting Config Portal
*WM: [3] WIFI station disconnect
*WM: [3] WiFi station enable
del if0
usl
mode : null
*WM: [2] Disabling STA
*WM: [2] Enabling AP
*WM: [1] StartAP with SSID:  ESP_245A77
modwifi evt: 8
e : softAP(5e:cf:7f:24:5a:77)
add if1
dhcp server start:(ip:192.168.4.1,mask:255.255.255.0,gw:192.168.4.1)
bcn 100
wifi evt: 8
*WM: [2] AP has anonymous access!
[AP] softap config unchanged
*WM: [1] SoftAP Configuration
*WM: [1] --------------------
*WM: [1] ssid:             ESP_245A77
*WM: [1] password:
*WM: [1] ssid_len:         10
*WM: [1] channel:          1
*WM: [1] authmode:
*WM: [1] ssid_hidden:
*WM: [1] max_connection:   4
*WM: [1] country:          CN
*WM: [1] beacon_interval:  100(ms)
*WM: [1] --------------------
*WM: [1] AP IP address: 192.168.4.1
*WM: [3] setupConfigPortal
*WM: [1] Starting Web Portal
*WM: [3] dns server started with ip:  192.168.4.1
*WM: [2] HTTP server started
mode : sta(5c:cf:7f:24:5a:77) + softAP(5e:cf:7f:24:5a:77)
add if0
wifi evt: 8
scandone
*WM: [2] WiFi Scan completed in 2198 ms
*WM: [2] Config Portal Running, blocking, waiting for clients...
wifi evt: 7
add 1
aid 1
station: 8c:86:1e:39:36:40 join, AID = 1
wifi evt: 5
wifi evt: 7
wifi evt: 7
wifi evt: 9
wifi evt: 7
wifi evt: 7
*WM: [3] -> captive.apple.com
*WM: [2] <- Request redirected to captive portal
*WM: [2] <- HTTP Root
*WM: [3] -> 192.168.4.1
*WM: [3] lastconxresult: WL_IDLE_STATUS
*WM: [2] Scan is cached 5907 ms ago
*WM: [3] -> captive.apple.com
*WM: [2] <- Request redirected to captive portal
*WM: [2] <- HTTP Root
*WM: [3] -> 192.168.4.1
*WM: [3] lastconxresult: WL_IDLE_STATUS
*WM: [2] Scan is cached 6353 ms ago
*WM: [3] -> captive.apple.com
*WM: [2] <- Request redirected to captive portal
*WM: [2] <- HTTP Root
*WM: [3] -> 192.168.4.1
*WM: [3] lastconxresult: WL_IDLE_STATUS
*WM: [2] Scan is cached 6451 ms ago
wifi evt: 9
wifi evt: 7
wifi evt: 7
wifi evt: 7
Originally created by @lbussy on GitHub (Nov 16, 2019). Original GitHub issue: https://github.com/tzapu/WiFiManager/issues/970 ### Basic Infos #### Hardware **WiFimanager Branch/Release:** - [ ] Master - [X] Development @ 22e35b2 **Esp8266/Esp32:** - [X] ESP8266 - [ ] ESP32 **Hardware: ESP-12e, esp01, esp25** - [ ] ESP01 - [X] ESP12 E/F/S (Wemos D1 mini v2.1.0) - [ ] Other **ESP Core Version: 2.4.0, staging** - [ ] 2.3.0 - [ ] 2.4.0 - [X] 2.5.2=20502000 - [ ] staging (master/dev) ### Description I am trying to reproduce the issues I have been having in #964 and have run into what I think is a newly introduced issue. At least I hope it is or else I have lost my mind. The captive portal fails to display AP configuration fields. I see the following only after connecting to the controller's AP: ![Wifimanager Captive Portal](https://www.brewbubbles.com/wp-content/uploads/2019/11/IMG_8069.jpg) ### Settings in IDE Module: Wemos D1 Mini Additional libraries: NONE ### Sketch ```cpp #include <WiFiManager.h> void setup() { delay(1000); Serial.begin(74880); Serial.setDebugOutput(true); Serial.flush(); WiFi.mode(WIFI_STA); delay(200); WiFiManager wm; if (!wm.autoConnect()) { Serial.println(F("Failed to connect and hit timeout.")); ESP.restart(); delay(1000); } Serial.println(F("Connected.")); } void loop() {} ``` ### Debug Messages ``` ets Jan 8 2013,rst cause:2, boot mode:(3,7) load 0x4010f000, len 1384, room 16 tail 8 chksum 0x2d csum 0x2d v8b899c12 ~ld SDK:2.2.1(cfd48f3)/Core:2.5.2=20502000/lwIP:STABLE-2_1_2_RELEASE/glue:1.1-7-g82abda3/BearSSL:a143020 *WM: [1] AutoConnect *WM: [2] Connecting as wifi client... *WM: [1] STA static IP: *WM: [2] setSTAConfig static ip not set *WM: [3] WIFI station disconnect *WM: [1] No saved credentials, skipping wifi *WM: [2] Connection result: WL_NO_SSID_AVAIL *WM: [3] lastconxresult: WL_NO_SSID_AVAIL *WM: [1] AutoConnect: FAILED *WM: [2] Starting Config Portal *WM: [3] WIFI station disconnect *WM: [3] WiFi station enable del if0 usl mode : null *WM: [2] Disabling STA *WM: [2] Enabling AP *WM: [1] StartAP with SSID: ESP_245A77 modwifi evt: 8 e : softAP(5e:cf:7f:24:5a:77) add if1 dhcp server start:(ip:192.168.4.1,mask:255.255.255.0,gw:192.168.4.1) bcn 100 wifi evt: 8 *WM: [2] AP has anonymous access! [AP] softap config unchanged *WM: [1] SoftAP Configuration *WM: [1] -------------------- *WM: [1] ssid: ESP_245A77 *WM: [1] password: *WM: [1] ssid_len: 10 *WM: [1] channel: 1 *WM: [1] authmode: *WM: [1] ssid_hidden: *WM: [1] max_connection: 4 *WM: [1] country: CN *WM: [1] beacon_interval: 100(ms) *WM: [1] -------------------- *WM: [1] AP IP address: 192.168.4.1 *WM: [3] setupConfigPortal *WM: [1] Starting Web Portal *WM: [3] dns server started with ip: 192.168.4.1 *WM: [2] HTTP server started mode : sta(5c:cf:7f:24:5a:77) + softAP(5e:cf:7f:24:5a:77) add if0 wifi evt: 8 scandone *WM: [2] WiFi Scan completed in 2198 ms *WM: [2] Config Portal Running, blocking, waiting for clients... wifi evt: 7 add 1 aid 1 station: 8c:86:1e:39:36:40 join, AID = 1 wifi evt: 5 wifi evt: 7 wifi evt: 7 wifi evt: 9 wifi evt: 7 wifi evt: 7 *WM: [3] -> captive.apple.com *WM: [2] <- Request redirected to captive portal *WM: [2] <- HTTP Root *WM: [3] -> 192.168.4.1 *WM: [3] lastconxresult: WL_IDLE_STATUS *WM: [2] Scan is cached 5907 ms ago *WM: [3] -> captive.apple.com *WM: [2] <- Request redirected to captive portal *WM: [2] <- HTTP Root *WM: [3] -> 192.168.4.1 *WM: [3] lastconxresult: WL_IDLE_STATUS *WM: [2] Scan is cached 6353 ms ago *WM: [3] -> captive.apple.com *WM: [2] <- Request redirected to captive portal *WM: [2] <- HTTP Root *WM: [3] -> 192.168.4.1 *WM: [3] lastconxresult: WL_IDLE_STATUS *WM: [2] Scan is cached 6451 ms ago wifi evt: 9 wifi evt: 7 wifi evt: 7 wifi evt: 7 ```
kerem closed this issue 2026-02-28 01:27:13 +03:00
kerem commented 2026-02-28 01:27:13 +03:00
Author
Owner
Copy link

@tablatronix commented on GitHub (Nov 17, 2019):

I have never seen this before..
So just no menu at all?

Is it reproducible? Can you bump debugging level?

<!-- gh-comment-id:554690586 --> @tablatronix commented on GitHub (Nov 17, 2019): I have never seen this before.. So just no menu at all? Is it reproducible? Can you bump debugging level?
kerem commented 2026-02-28 01:27:13 +03:00
Author
Owner
Copy link

@tablatronix commented on GitHub (Nov 17, 2019):

Can you try a different device? I wonder if its an html rendering issue

<!-- gh-comment-id:554691222 --> @tablatronix commented on GitHub (Nov 17, 2019): Can you try a different device? I wonder if its an html rendering issue
kerem commented 2026-02-28 01:27:13 +03:00
Author
Owner
Copy link

@lbussy commented on GitHub (Nov 17, 2019):

No menu at all, just what you see in that screenshot. I tried it with two different phones and neither one has taken a recent update. I also opened a new board and tried it and had the same results. I turned on DEBUG_ESP_CORE and DEBUG_ESP_HTTP_SERVER (in addition to DEBUG_ESP_WIFI, I hope that's what you meant.

Here's the debug:

 ets Jan  8 2013,rst cause:2, boot mode:(3,7)

load 0x4010f000, len 1384, room 16
tail 8
chksum 0x2d
csum 0x2d
v8b899c12
~ld

SDK:2.2.1(cfd48f3)/Core:2.5.2=20502000/lwIP:STABLE-2_1_2_RELEASE/glue:1.1-7-g82abda3/BearSSL:a143020
data  : 0x3ffe8000 ~ 0x3ffe850c, len: 1292
rodata: 0x3ffe8510 ~ 0x3ffe920c, len: 3324
bss   : 0x3ffe9210 ~ 0x3ffef418, len: 25096
heap  : 0x3ffef418 ~ 0x3fffc000, len: 52200
*WM: [1] getCoreVersion():          2_5_2
*WM: [1] system_get_sdk_version():  2.2.1(cfd48f3)
*WM: [1] system_get_boot_version(): 31
*WM: [1] getFreeHeap():             50256
*WM: [1] AutoConnect
*WM: [2] Connecting as wifi client...
*WM: [1] STA static IP:
*WM: [2] setSTAConfig static ip not set
*WM: [3] WIFI station disconnect
*WM: [1] No saved credentials, skipping wifi
*WM: [2] Connection result: WL_NO_SSID_AVAIL
*WM: [3] lastconxresult: WL_NO_SSID_AVAIL
*WM: [1] AutoConnect: FAILED
*WM: [2] Starting Config Portal
*WM: [3] WIFI station disconnect
*WM: [3] WiFi station enable
del if0
usl
mode : null
*WM: [2] Disabling STA
*WM: [2] Enabling AP
*WM: [1] StartAP with SSID:  ESP_773D7D
modwifi evt: 8
e : softAP(2e:f4:32:77:3d:7d)
add if1
dhcp server start:(ip:192.168.4.1,mask:255.255.255.0,gw:192.168.4.1)
bcn 100
wifi evt: 8
*WM: [2] AP has anonymous access!
[AP] softap config unchanged
*WM: [1] SoftAP Configuration
*WM: [1] --------------------
*WM: [1] ssid:             ESP_773D7D
*WM: [1] password:
*WM: [1] ssid_len:         10
*WM: [1] channel:          1
*WM: [1] authmode:
*WM: [1] ssid_hidden:
*WM: [1] max_connection:   4
*WM: [1] country:          CN
*WM: [1] beacon_interval:  100(ms)
*WM: [1] --------------------
*WM: [1] AP IP address: 192.168.4.1
*WM: [3] setupConfigPortal
*WM: [1] Starting Web Portal
*WM: [3] dns server started with ip:  192.168.4.1
*WM: [2] HTTP server started
mode : sta(2c:f4:32:77:3d:7d) + softAP(2e:f4:32:77:3d:7d)
add if0
wifi evt: 8
wifi evt: 7
wifi evt: 7
scandone
*WM: [2] WiFi Scan completed in 2200 ms
*WM: [2] Config Portal Running, blocking, waiting for clients...
wifi evt: 7
wifi evt: 7
wifi evt: 7
wifi evt: 7
wifi evt: 7
wifi evt: 7
add 1
aid 1
station: 8c:86:1e:39:36:40 join, AID = 1
wifi evt: 5
wifi evt: 7
wifi evt: 7
wifi evt: 7
wifi evt: 7
wifi evt: 7
wifi evt: 7
wifi evt: 9
:urn 35
:urd 35, 35, 0
WS:ac
:ref 1
WS:av
:ref 2
:ur 2
New client
:ref 2
:ur 2
:rn 130
request: GET /hotspot-detect.html HTTP/1.0
method: GET url: /hotspot-detect.html search:
headerName: Host
headerValue: captive.apple.com
headerName: Connection
headerValue: close
headerName: User-Agent
headerValue: CaptiveNetworkSupport-390.0.3 wispr
:c0 1, 130
args:
args count: 0
args:
args count: 0
Request: /hotspot-detect.html
Arguments:
final list of key/value pairs:
request handler not found
*WM: [3] -> captive.apple.com
*WM: [2] <- Request redirected to captive portal
:ref 2
:ur 2
:wr 116 0
:wrc 116 116 0
:ref 2
:wustmo
:close
:ur 2
:ur 1
WS:dis
:del
:urn 42
:urd 42, 42, 0
:urn 34
:urd 34, 34, 0
wifi evt: 7
WS:ac
:rn 105
:ref 1
WS:av
:ref 2
:ur 2
New client
:ref 2
:ur 2
request: GET / HTTP/1.0
method: GET url: / search:
headerName: Host
headerValue: 192.168.4.1
headerName: Connection
headerValue: close
headerName: User-Agent
headerValue: CaptiveNetworkSupport-390.0.3 wispr
:c0 1, 105
args:
args count: 0
args:
args count: 0
Request: /
Arguments:
final list of key/value pairs:
*WM: [2] <- HTTP Root
*WM: [3] -> 192.168.4.1
*WM: [3] lastconxresult: WL_IDLE_STATUS
:wr 107 0
:wrc 107 107 0
:wr 3281 0
:wrc 965 3281 0
:ack 107
:ack 965
:wr 2316 965
:wrc 1072 2316 0
:ack 1072
:wr 1244 2037
:wrc 1072 1244 0
:ack 1072
:wr 172 3109
:wrc 172 172 0
*WM: [2] Scan is cached 7354 ms ago
:ack 172
:rcl
:abort
:ur 1
WS:dis
:del
WS:ac
:rn 370
:ref 1
WS:av
:ref 2
:ur 2
New client
:ref 2
:ur 2
request: GET /hotspot-detect.html HTTP/1.1
method: GET url: /hotspot-detect.html search:
headerName: Host
headerValue: captive.apple.com
headerName: Upgrade-Insecure-Requests
headerValue: 1
headerName: Accept
headerValue: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
headerName: User-Agent
headerValue: Mozilla/5.0 (iPhone; CPU iPhone OS 13_1_3 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/15E148
headerName: Accept-Language
headerValue: en-us
headerName: Accept-Encoding
headerValue: gzip, deflate
headerName: Connection
headerValue: keep-alive
:c0 1, 370
args:
args count: 0
args:
args count: 0
Request: /hotspot-detect.html
Arguments:
final list of key/value pairs:
request handler not found
*WM: [3] -> captive.apple.com
*WM: [2] <- Request redirected to captive portal
:ref 2
:ur 2
:wr 116 0
:wrc 116 116 0
:ref 2
:ack 116
:rcl
:abort
:ur 2
:ur 1
WS:dis
:del
WS:ac
:ref 1
WS:av
:ref 2
:ur 2
New client
:ref 2
:ur 2
:rn 345
request: GET / HTTP/1.1
method: GET url: / search:
headerName: Host
headerValue: 192.168.4.1
headerName: Upgrade-Insecure-Requests
headerValue: 1
headerName: Accept
headerValue: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
headerName: User-Agent
headerValue: Mozilla/5.0 (iPhone; CPU iPhone OS 13_1_3 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/15E148
headerName: Accept-Language
headerValue: en-us
headerName: Accept-Encoding
headerValue: gzip, deflate
headerName: Connection
headerValue: keep-alive
:c0 1, 345
args:
args count: 0
args:
args count: 0
Request: /
Arguments:
final list of key/value pairs:
*WM: [2] <- HTTP Root
*WM: [3] -> 192.168.4.1
*WM: [3] lastconxresult: WL_IDLE_STATUS
:wr 107 0
:wrc 107 107 0
:wr 3281 0
:wrc 965 3281 0
:ack 107
:wr 2316 965
:wrc 107 2316 0
:ack 1072
:wr 2209 1072
:wrc 1072 2209 0
:ack 1072
:wr 1137 2144
:wrc 1072 1137 0
wifi evt: 7
:ack 1072
:wr 65 3216
:wrc 65 65 0
*WM: [2] Scan is cached 8060 ms ago
wifi evt: 7
wifi evt: 7
:ack 65
:rcl
:abort
:ur 1
WS:dis
:del
WS:ac
:rn 130
:ref 1
WS:av
:ref 2
:ur 2
New client
:ref 2
:ur 2
request: GET /hotspot-detect.html HTTP/1.0
method: GET url: /hotspot-detect.html search:
headerName: Host
headerValue: captive.apple.com
headerName: Connection
headerValue: close
headerName: User-Agent
headerValue: CaptiveNetworkSupport-390.0.3 wispr
:c0 1, 130
args:
args count: 0
args:
args count: 0
Request: /hotspot-detect.html
Arguments:
final list of key/value pairs:
request handler not found
*WM: [3] -> captive.apple.com
*WM: [2] <- Request redirected to captive portal
:ref 2
:ur 2
:wr 116 0
:wrc 116 116 0
:ref 2
:ack 116
:rcl
:abort
:ur 2
:ur 1
WS:dis
:del
WS:ac
:rn 105
:ref 1
WS:av
:ref 2
:ur 2
New client
:ref 2
:ur 2
request: GET / HTTP/1.0
method: GET url: / search:
headerName: Host
headerValue: 192.168.4.1
headerName: Connection
headerValue: close
headerName: User-Agent
headerValue: CaptiveNetworkSupport-390.0.3 wispr
:c0 1, 105
args:
args count: 0
args:
args count: 0
Request: /
Arguments:
final list of key/value pairs:
*WM: [2] <- HTTP Root
*WM: [3] -> 192.168.4.1
*WM: [3] lastconxresult: WL_IDLE_STATUS
:wr 107 0
:wrc 107 107 0
:wr 3281 0
:wrc 965 3281 0
:wr 2316 965
:ack 107
:ack 965
:wr 2316 965
:wrc 1072 2316 0
:ack 1072
:wr 1244 2037
:wrc 1072 1244 0
:ack 1072
:wr 172 3109
:wrc 172 172 0
*WM: [2] Scan is cached 8636 ms ago
:ack 172
:rcl
:abort
:ur 1
WS:dis
:del
wifi evt: 7
wifi evt: 7
wifi evt: 7
wifi evt: 7
<!-- gh-comment-id:554696110 --> @lbussy commented on GitHub (Nov 17, 2019): No menu at all, just what you see in that screenshot. I tried it with two different phones and neither one has taken a recent update. I also opened a new board and tried it and had the same results. I turned on `DEBUG_ESP_CORE` and `DEBUG_ESP_HTTP_SERVER` (in addition to `DEBUG_ESP_WIFI`, I hope that's what you meant. Here's the debug: ``` ets Jan 8 2013,rst cause:2, boot mode:(3,7) load 0x4010f000, len 1384, room 16 tail 8 chksum 0x2d csum 0x2d v8b899c12 ~ld SDK:2.2.1(cfd48f3)/Core:2.5.2=20502000/lwIP:STABLE-2_1_2_RELEASE/glue:1.1-7-g82abda3/BearSSL:a143020 data : 0x3ffe8000 ~ 0x3ffe850c, len: 1292 rodata: 0x3ffe8510 ~ 0x3ffe920c, len: 3324 bss : 0x3ffe9210 ~ 0x3ffef418, len: 25096 heap : 0x3ffef418 ~ 0x3fffc000, len: 52200 *WM: [1] getCoreVersion(): 2_5_2 *WM: [1] system_get_sdk_version(): 2.2.1(cfd48f3) *WM: [1] system_get_boot_version(): 31 *WM: [1] getFreeHeap(): 50256 *WM: [1] AutoConnect *WM: [2] Connecting as wifi client... *WM: [1] STA static IP: *WM: [2] setSTAConfig static ip not set *WM: [3] WIFI station disconnect *WM: [1] No saved credentials, skipping wifi *WM: [2] Connection result: WL_NO_SSID_AVAIL *WM: [3] lastconxresult: WL_NO_SSID_AVAIL *WM: [1] AutoConnect: FAILED *WM: [2] Starting Config Portal *WM: [3] WIFI station disconnect *WM: [3] WiFi station enable del if0 usl mode : null *WM: [2] Disabling STA *WM: [2] Enabling AP *WM: [1] StartAP with SSID: ESP_773D7D modwifi evt: 8 e : softAP(2e:f4:32:77:3d:7d) add if1 dhcp server start:(ip:192.168.4.1,mask:255.255.255.0,gw:192.168.4.1) bcn 100 wifi evt: 8 *WM: [2] AP has anonymous access! [AP] softap config unchanged *WM: [1] SoftAP Configuration *WM: [1] -------------------- *WM: [1] ssid: ESP_773D7D *WM: [1] password: *WM: [1] ssid_len: 10 *WM: [1] channel: 1 *WM: [1] authmode: *WM: [1] ssid_hidden: *WM: [1] max_connection: 4 *WM: [1] country: CN *WM: [1] beacon_interval: 100(ms) *WM: [1] -------------------- *WM: [1] AP IP address: 192.168.4.1 *WM: [3] setupConfigPortal *WM: [1] Starting Web Portal *WM: [3] dns server started with ip: 192.168.4.1 *WM: [2] HTTP server started mode : sta(2c:f4:32:77:3d:7d) + softAP(2e:f4:32:77:3d:7d) add if0 wifi evt: 8 wifi evt: 7 wifi evt: 7 scandone *WM: [2] WiFi Scan completed in 2200 ms *WM: [2] Config Portal Running, blocking, waiting for clients... wifi evt: 7 wifi evt: 7 wifi evt: 7 wifi evt: 7 wifi evt: 7 wifi evt: 7 add 1 aid 1 station: 8c:86:1e:39:36:40 join, AID = 1 wifi evt: 5 wifi evt: 7 wifi evt: 7 wifi evt: 7 wifi evt: 7 wifi evt: 7 wifi evt: 7 wifi evt: 9 :urn 35 :urd 35, 35, 0 WS:ac :ref 1 WS:av :ref 2 :ur 2 New client :ref 2 :ur 2 :rn 130 request: GET /hotspot-detect.html HTTP/1.0 method: GET url: /hotspot-detect.html search: headerName: Host headerValue: captive.apple.com headerName: Connection headerValue: close headerName: User-Agent headerValue: CaptiveNetworkSupport-390.0.3 wispr :c0 1, 130 args: args count: 0 args: args count: 0 Request: /hotspot-detect.html Arguments: final list of key/value pairs: request handler not found *WM: [3] -> captive.apple.com *WM: [2] <- Request redirected to captive portal :ref 2 :ur 2 :wr 116 0 :wrc 116 116 0 :ref 2 :wustmo :close :ur 2 :ur 1 WS:dis :del :urn 42 :urd 42, 42, 0 :urn 34 :urd 34, 34, 0 wifi evt: 7 WS:ac :rn 105 :ref 1 WS:av :ref 2 :ur 2 New client :ref 2 :ur 2 request: GET / HTTP/1.0 method: GET url: / search: headerName: Host headerValue: 192.168.4.1 headerName: Connection headerValue: close headerName: User-Agent headerValue: CaptiveNetworkSupport-390.0.3 wispr :c0 1, 105 args: args count: 0 args: args count: 0 Request: / Arguments: final list of key/value pairs: *WM: [2] <- HTTP Root *WM: [3] -> 192.168.4.1 *WM: [3] lastconxresult: WL_IDLE_STATUS :wr 107 0 :wrc 107 107 0 :wr 3281 0 :wrc 965 3281 0 :ack 107 :ack 965 :wr 2316 965 :wrc 1072 2316 0 :ack 1072 :wr 1244 2037 :wrc 1072 1244 0 :ack 1072 :wr 172 3109 :wrc 172 172 0 *WM: [2] Scan is cached 7354 ms ago :ack 172 :rcl :abort :ur 1 WS:dis :del WS:ac :rn 370 :ref 1 WS:av :ref 2 :ur 2 New client :ref 2 :ur 2 request: GET /hotspot-detect.html HTTP/1.1 method: GET url: /hotspot-detect.html search: headerName: Host headerValue: captive.apple.com headerName: Upgrade-Insecure-Requests headerValue: 1 headerName: Accept headerValue: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 headerName: User-Agent headerValue: Mozilla/5.0 (iPhone; CPU iPhone OS 13_1_3 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/15E148 headerName: Accept-Language headerValue: en-us headerName: Accept-Encoding headerValue: gzip, deflate headerName: Connection headerValue: keep-alive :c0 1, 370 args: args count: 0 args: args count: 0 Request: /hotspot-detect.html Arguments: final list of key/value pairs: request handler not found *WM: [3] -> captive.apple.com *WM: [2] <- Request redirected to captive portal :ref 2 :ur 2 :wr 116 0 :wrc 116 116 0 :ref 2 :ack 116 :rcl :abort :ur 2 :ur 1 WS:dis :del WS:ac :ref 1 WS:av :ref 2 :ur 2 New client :ref 2 :ur 2 :rn 345 request: GET / HTTP/1.1 method: GET url: / search: headerName: Host headerValue: 192.168.4.1 headerName: Upgrade-Insecure-Requests headerValue: 1 headerName: Accept headerValue: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8 headerName: User-Agent headerValue: Mozilla/5.0 (iPhone; CPU iPhone OS 13_1_3 like Mac OS X) AppleWebKit/605.1.15 (KHTML, like Gecko) Mobile/15E148 headerName: Accept-Language headerValue: en-us headerName: Accept-Encoding headerValue: gzip, deflate headerName: Connection headerValue: keep-alive :c0 1, 345 args: args count: 0 args: args count: 0 Request: / Arguments: final list of key/value pairs: *WM: [2] <- HTTP Root *WM: [3] -> 192.168.4.1 *WM: [3] lastconxresult: WL_IDLE_STATUS :wr 107 0 :wrc 107 107 0 :wr 3281 0 :wrc 965 3281 0 :ack 107 :wr 2316 965 :wrc 107 2316 0 :ack 1072 :wr 2209 1072 :wrc 1072 2209 0 :ack 1072 :wr 1137 2144 :wrc 1072 1137 0 wifi evt: 7 :ack 1072 :wr 65 3216 :wrc 65 65 0 *WM: [2] Scan is cached 8060 ms ago wifi evt: 7 wifi evt: 7 :ack 65 :rcl :abort :ur 1 WS:dis :del WS:ac :rn 130 :ref 1 WS:av :ref 2 :ur 2 New client :ref 2 :ur 2 request: GET /hotspot-detect.html HTTP/1.0 method: GET url: /hotspot-detect.html search: headerName: Host headerValue: captive.apple.com headerName: Connection headerValue: close headerName: User-Agent headerValue: CaptiveNetworkSupport-390.0.3 wispr :c0 1, 130 args: args count: 0 args: args count: 0 Request: /hotspot-detect.html Arguments: final list of key/value pairs: request handler not found *WM: [3] -> captive.apple.com *WM: [2] <- Request redirected to captive portal :ref 2 :ur 2 :wr 116 0 :wrc 116 116 0 :ref 2 :ack 116 :rcl :abort :ur 2 :ur 1 WS:dis :del WS:ac :rn 105 :ref 1 WS:av :ref 2 :ur 2 New client :ref 2 :ur 2 request: GET / HTTP/1.0 method: GET url: / search: headerName: Host headerValue: 192.168.4.1 headerName: Connection headerValue: close headerName: User-Agent headerValue: CaptiveNetworkSupport-390.0.3 wispr :c0 1, 105 args: args count: 0 args: args count: 0 Request: / Arguments: final list of key/value pairs: *WM: [2] <- HTTP Root *WM: [3] -> 192.168.4.1 *WM: [3] lastconxresult: WL_IDLE_STATUS :wr 107 0 :wrc 107 107 0 :wr 3281 0 :wrc 965 3281 0 :wr 2316 965 :ack 107 :ack 965 :wr 2316 965 :wrc 1072 2316 0 :ack 1072 :wr 1244 2037 :wrc 1072 1244 0 :ack 1072 :wr 172 3109 :wrc 172 172 0 *WM: [2] Scan is cached 8636 ms ago :ack 172 :rcl :abort :ur 1 WS:dis :del wifi evt: 7 wifi evt: 7 wifi evt: 7 wifi evt: 7 ```
kerem commented 2026-02-28 01:27:13 +03:00
Author
Owner
Copy link

@tihoangyeudau commented on GitHub (Nov 17, 2019):

i have same issue.

<!-- gh-comment-id:554699314 --> @tihoangyeudau commented on GitHub (Nov 17, 2019): i have same issue.
kerem commented 2026-02-28 01:27:13 +03:00
Author
Owner
Copy link

@tablatronix commented on GitHub (Nov 17, 2019):

ok let me see if I broke something

<!-- gh-comment-id:554768929 --> @tablatronix commented on GitHub (Nov 17, 2019): ok let me see if I broke something
kerem commented 2026-02-28 01:27:13 +03:00
Author
Owner
Copy link

@lbussy commented on GitHub (Nov 17, 2019):

Confirmed fixed by updating from 22e35b2 to 56ad40d.

<!-- gh-comment-id:554773112 --> @lbussy commented on GitHub (Nov 17, 2019): Confirmed fixed by updating from 22e35b2 to 56ad40d.
kerem commented 2026-02-28 01:27:13 +03:00
Author
Owner
Copy link

@tablatronix commented on GitHub (Nov 17, 2019):

Sorry about that

<!-- gh-comment-id:554799428 --> @tablatronix commented on GitHub (Nov 17, 2019): Sorry about that
kerem commented 2026-02-28 01:27:13 +03:00
Author
Owner
Copy link

@tihoangyeudau commented on GitHub (Nov 19, 2019):

thank you all friends

<!-- gh-comment-id:555336742 --> @tihoangyeudau commented on GitHub (Nov 19, 2019): thank you all friends
Sign in to join this conversation.
No Branch/Tag specified
Branches Tags
master
revert-1849-master
feature_fastconnect
feature_auth
feature_slimable
PEAP
feature_statichtmlparams
feature_asyncwebserver
feature_pagestringsref
parameter-smart-ptr
gh-pages
Legacy_v1
hotfixes
autochannelselect_feature
travis
smartconfig
v2.0.17
v2.0.16-rc.2
v2.0.15-rc.1
v2.0.0-rc.1
v2.0.14-beta
v2.0.13-beta
v2.0.12-beta
v2.0.11-beta
v2.0.10-beta
v2.0.9-beta
v2.0.8-beta
2.0.7-beta
2.0.6-beta
2.0.5-beta
2.0.4-beta
0.16.0
2.0.3-alpha
0.15.0
0.14
0.13
0.12
0.11
0.10
0.9
0.8
0.7
0.6
0.5
v0.4
v0.3
v0.2
v0.1
Labels
Clear labels
📶 WiFi


🕸️ HTTP


Branch


DEV Help Wanted


Discussion


Documentation


ESP32


Example


Good First Issue


Hotfix


In Progress


Incomplete


Needs Feeback


Priority


QA


Question


Task


Upstream/Dependancy


bug


duplicate


enhancement


invalid


pull-request

Mirrored from GitHub Pull Request


wontfix
No labels
📶 WiFi
🕸️ HTTP
Branch
DEV Help Wanted
Discussion
Documentation
ESP32
Example
Good First Issue
Hotfix
In Progress
Incomplete
Needs Feeback
Priority
QA
Question
Task
Upstream/Dependancy
bug
duplicate
enhancement
invalid
pull-request
wontfix
Milestone
Clear milestone
No items
No milestone
Projects
Clear projects
No items
No project
Assignees
Clear assignees
No assignees
1 participant
Notifications
Due date
The due date is invalid or out of range. Please use the format "yyyy-mm-dd".

No due date set.

Dependencies

No dependencies set.

Reference
starred/WiFiManager#825
No description provided.
